Renogy Wanderer 30A PWM Solar Panel Charge Controller Battery Regulator 12V
4.6 (39 items)
Limited Time SaleUS$18.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 240703863 | Release Date | 2026/07/16 | List Price | US$12.00 | Model Number | 240703863 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Renogy Wanderer is a 30A PWM solar power charge controller. This advanced negative-ground controller is designed for off-grid solar applications and can be used with a 12V battery or battery bank. Integrating highly efficient PWM charging, the Wanderer increases battery life and improves system performance. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. If you have any questions regarding this product, please call us at 1 (800) 330-8678 or email sales@renogy.com
- Safe
- Negative-ground controller.

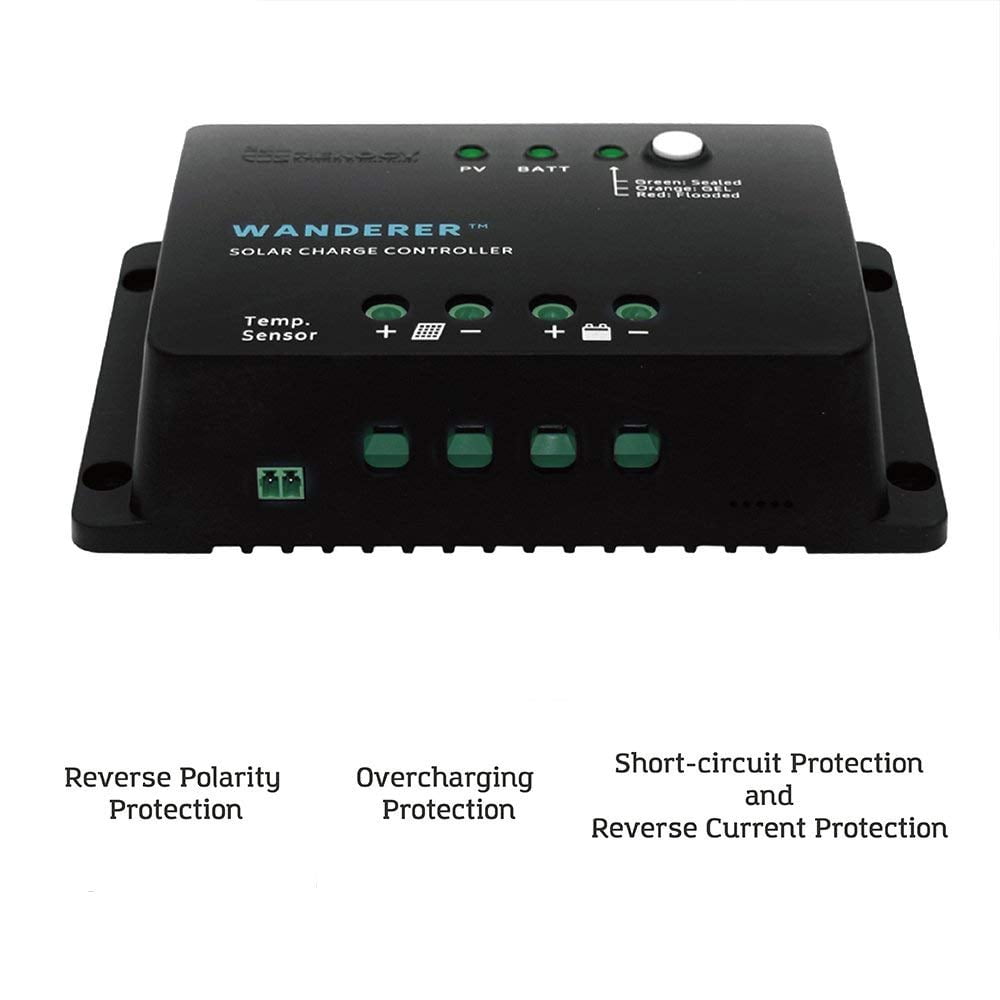

- Protection against: overcharging, overload, short-circuit, and reverse polarity.
- 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) prevents batteries from over-charging and over-discharging.
- Smart:

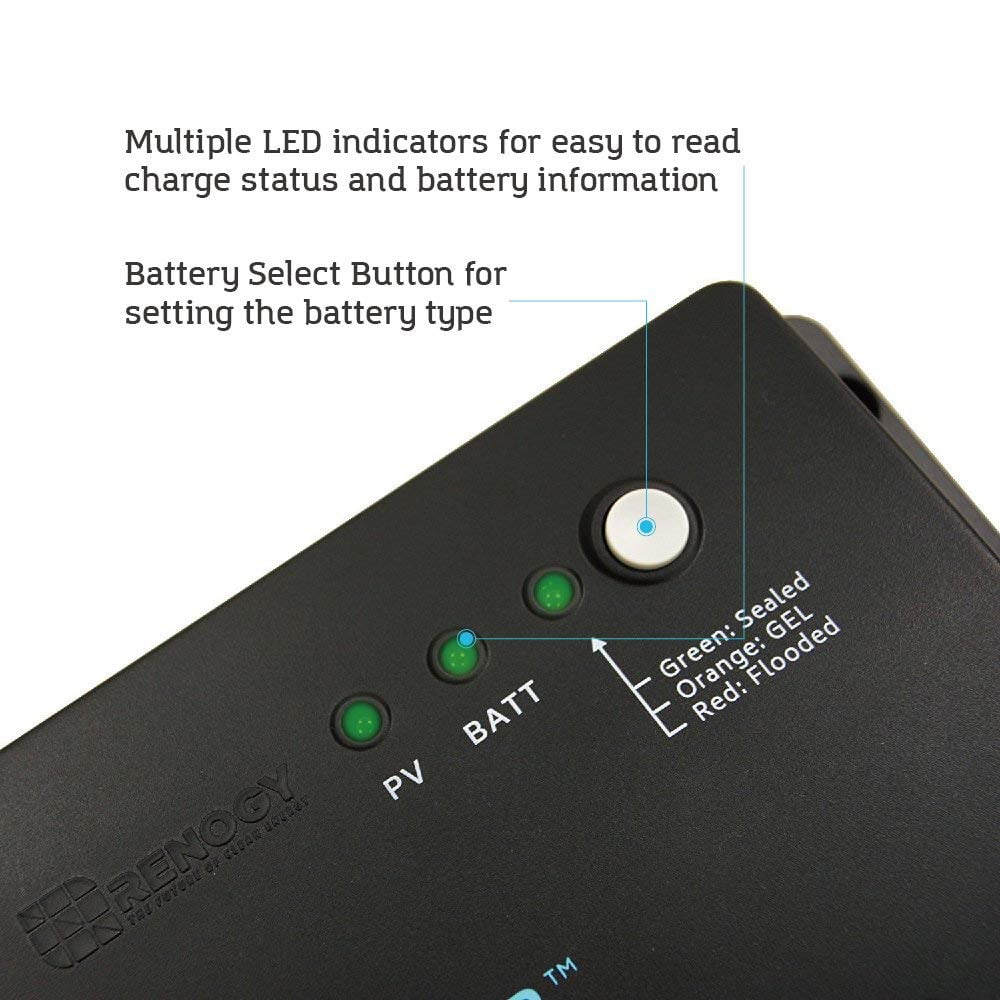

- LED Indicators that inform you about the charge controller's status.
- Compensates for temperature, automatically corrects charging and discharging parameters, and improves battery longevity.
- Remote Temperature Sensor compatible: measures the battery?s temperature and uses this data for accurate temperature compensation.
- Versatile
- Compatible with Sealed, Gel, and Flooded batteries.
- One (1) Renogy 10A PWM Duo Battery Controller.
- Specifications
- Nominal Voltage: 12 VDC
- Rated Charge Current: 30A
- Max. PV Input Voltage: 25 VDC
- Self-Consumption: <10mA
- High Voltage Disconnect: 16
- Over-Voltage Reconnect: 15V
- Low Voltage Disconnect: 11.1V
- Low Voltage Reconnect: 12.6V
- Under Voltage Warning: 12V
- Under Voltage Recover: 12.2V
- Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: NO
- Boost Voltage: Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V
- Float Voltage: 13.8V
- Equalize Duration: 120 min
- Boost Duration: 120 min
- Temperature Compensation: -3mV/?C/2V
- Working Temperature: -20?F - 113?F
- Storage Temperature: -31?F - 176?F
- Max Gauge Size: Up to 4AWG
- Weight: 0.65 lbs.
- Dimensions: 6.45 x 4.31 x 1.76 inches
- Enclosure: IP20
- Materials: Metal, Glass
- Orders over $200 may require a signature.
| Amps | 30 Amps |
|---|---|
| Volts | 12 V |
| Brand | Renogy |
| Dimensions | 5.50 x 3.70 x 1.00 Inches |
| Weight | 0.3 lbs |
| Model | 0081636002124 |
| Manufacturer | Supplier Generic |
