Digital Oscilloscope Channels Handheld Storage USB Oscilloscopes + 16 Channels Logic Analyze

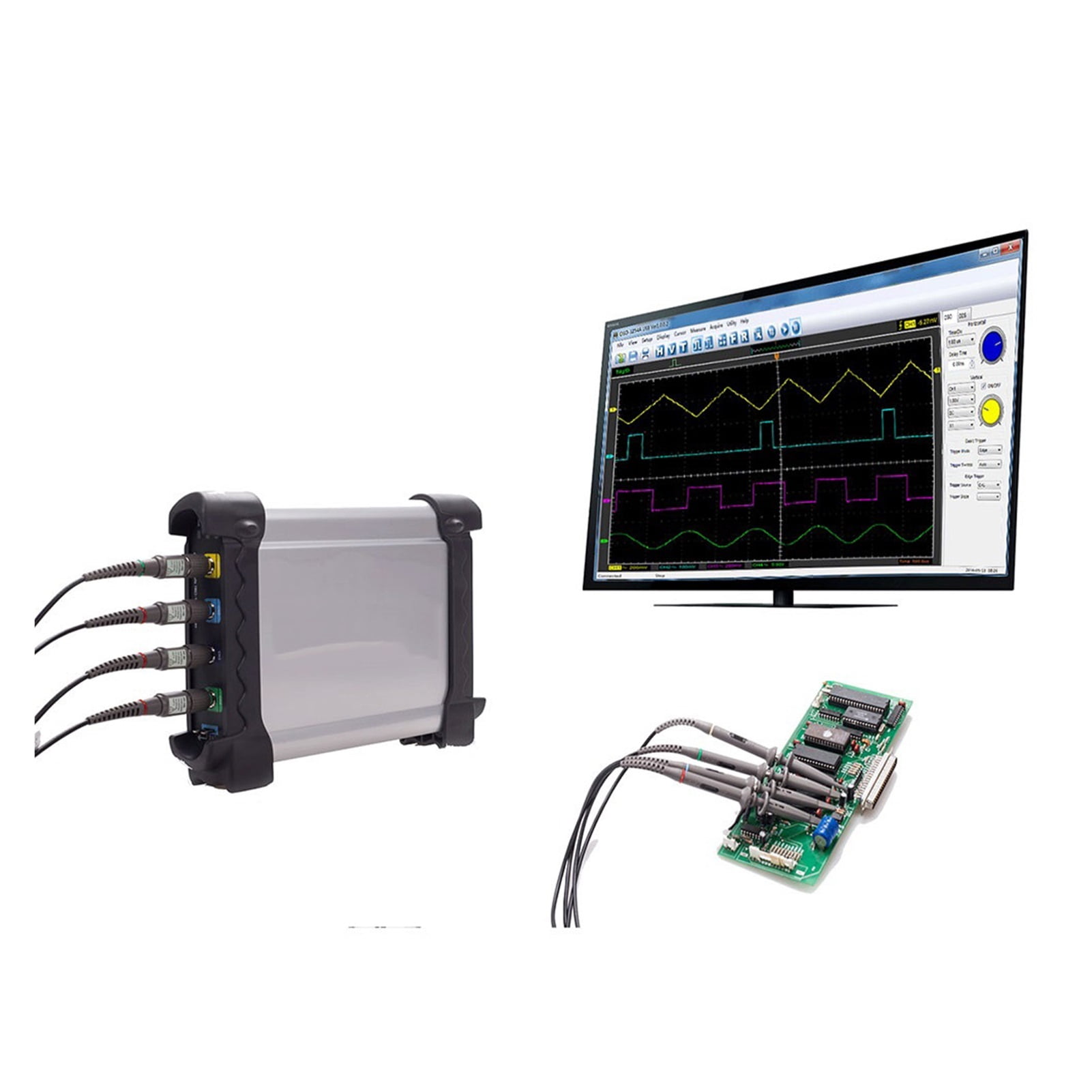

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• USB Oscilloscopes 4 Channels 250Mhz PC Based Storage Digital Osciloscopio +16 Channels Logic Analyzer +Signal Generator

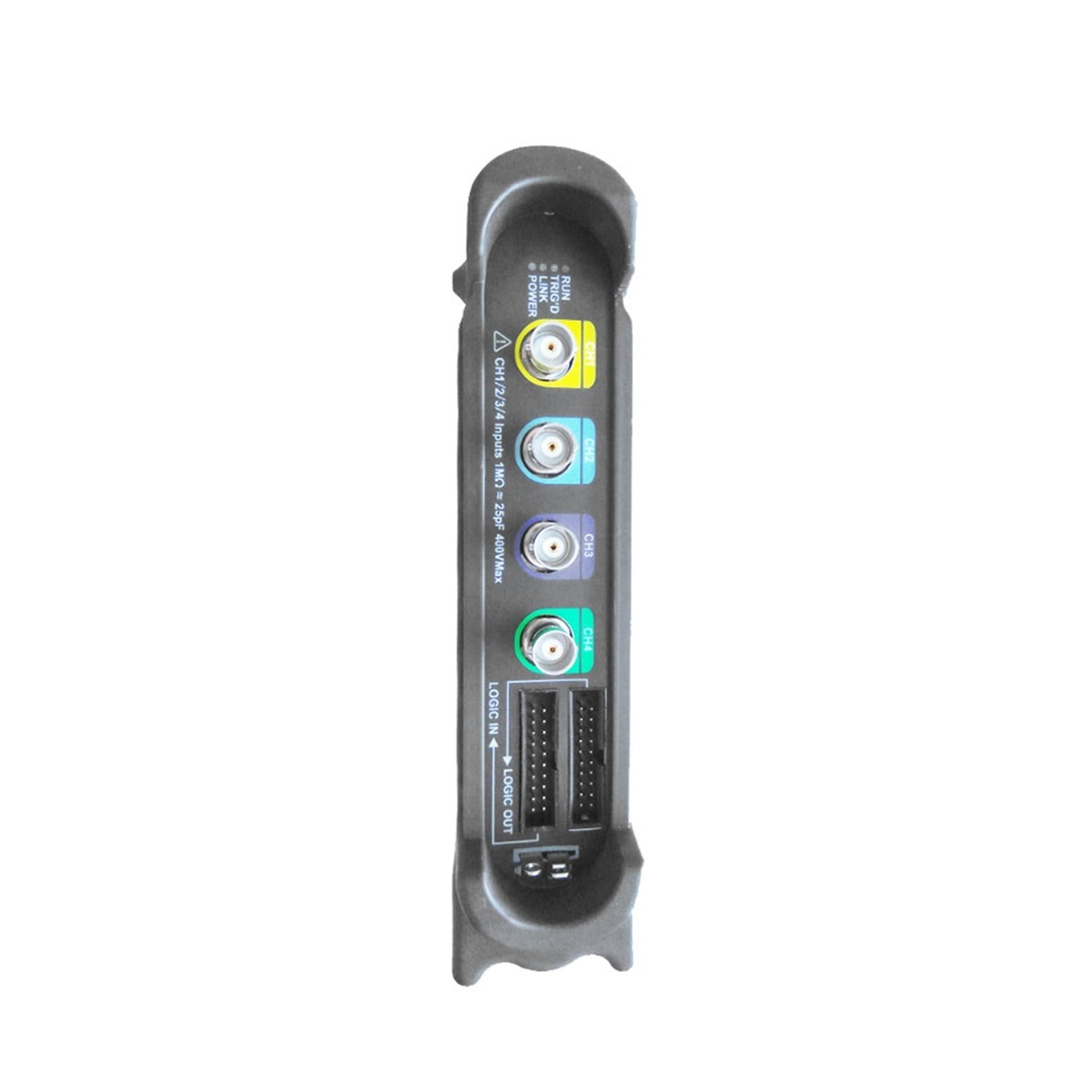

• 4CH Oscilloscope + 16CH Logic Analyzer + 1CH Function/Arb. Waveform Generator + 16 Bits Word Generator + 1CH EXT Trigger.
• 128M memory depth, save maximum 128M sampling points, accurately sampling signal.
• Support PoE module, support power supply remotely and communication. (optional)
• Its performance can compete benchtop oscilloscope's, 4 independent analog channels, 1GSa/s high-speed real-time sampling rate, 1mV-10V/DIV high input sensitivity, 250MHz high bandwidth.
• Function/Arb. waveform generator: 200MSa/s DDS, 12 bits vertical resolution, build-in various standard waveforms, arbitrary waveform which is convenient to edit and show irregular signals like transducer.
• PASS/FAIL test, rich trigger function, dynamic cursor tracking, similar interface with bench oscilloscope, easy to use. High cost performance
• Continuous waveform recording and replay function (200Hz recording bandwidth );
• 1 GSa/s sampling rate.

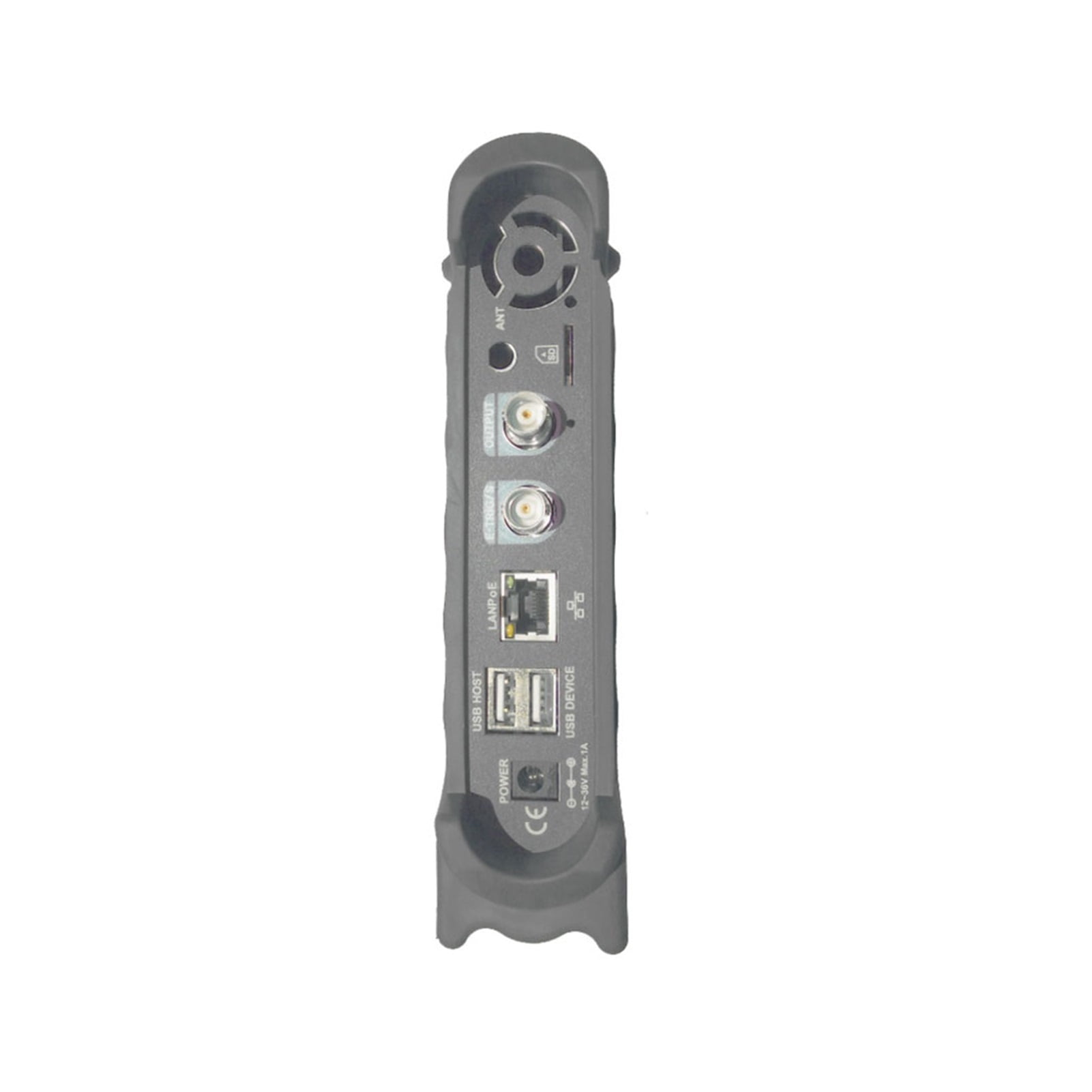

• 12-36V wide range input power.
• Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with I - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
• More fit for tablet PC, laptop PC, maintenance and adjustment of production line, convenient for travel.
• More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y.
• spectrum analyzer

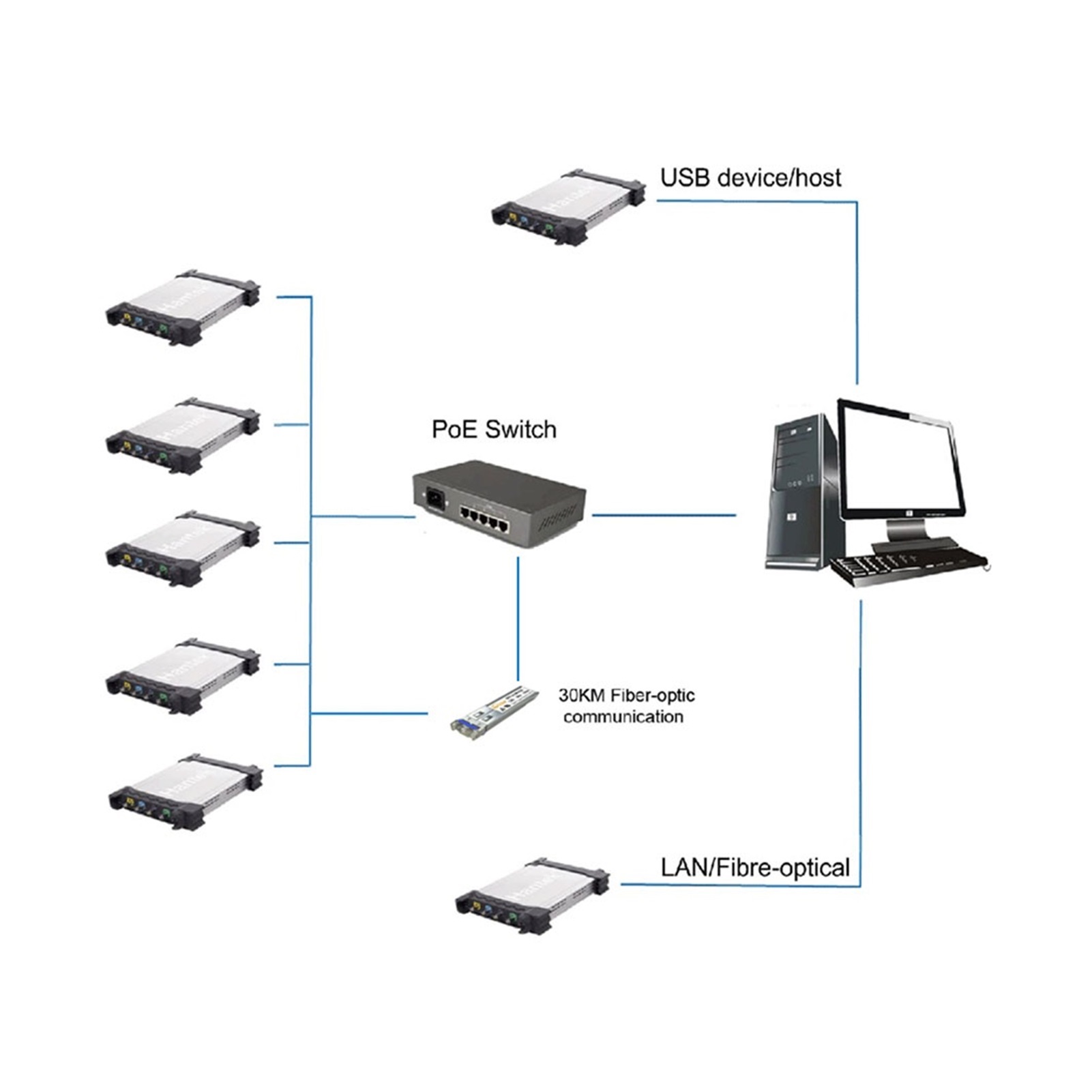

• One computer could connect with multiple oscilloscopes, expand the channel number easily.
