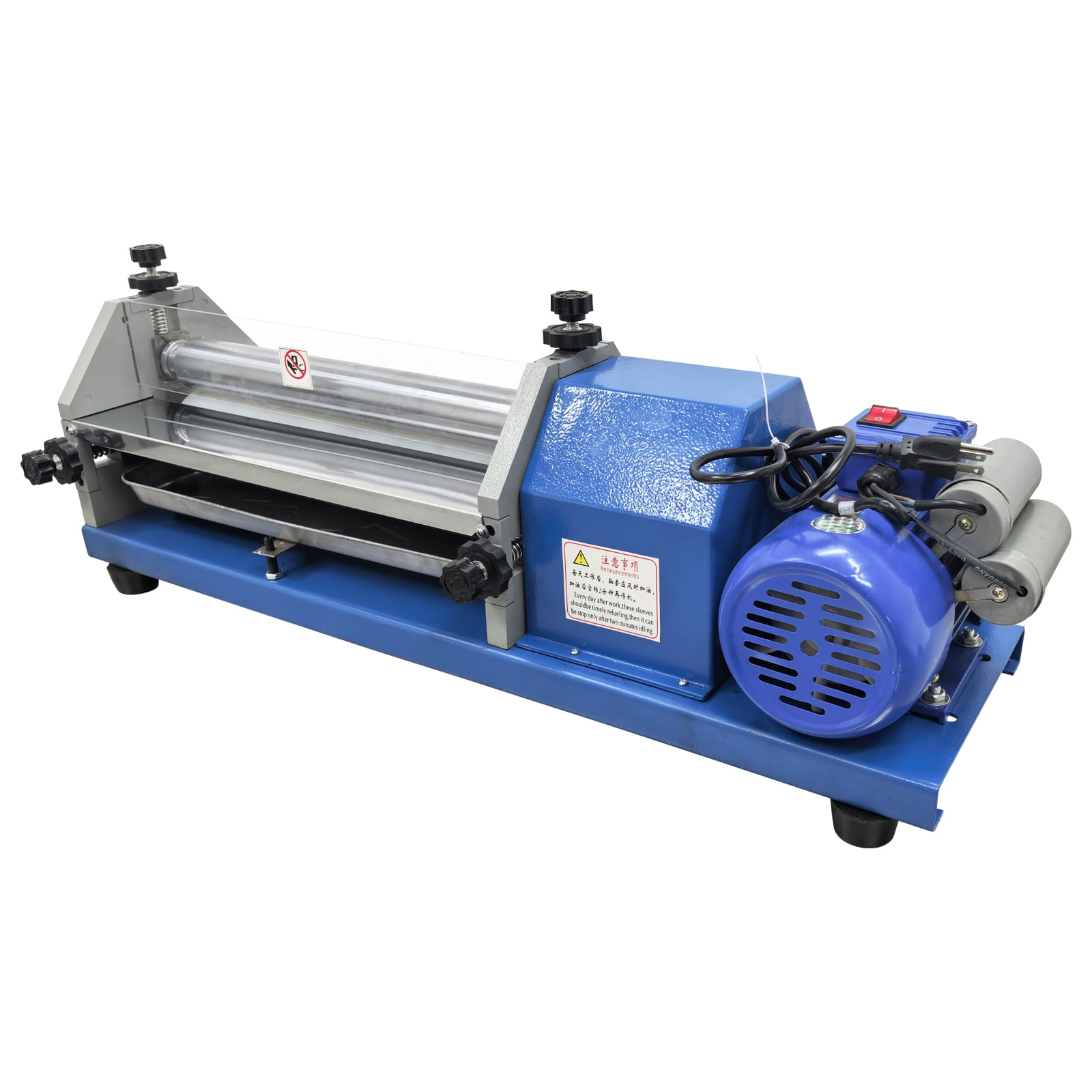

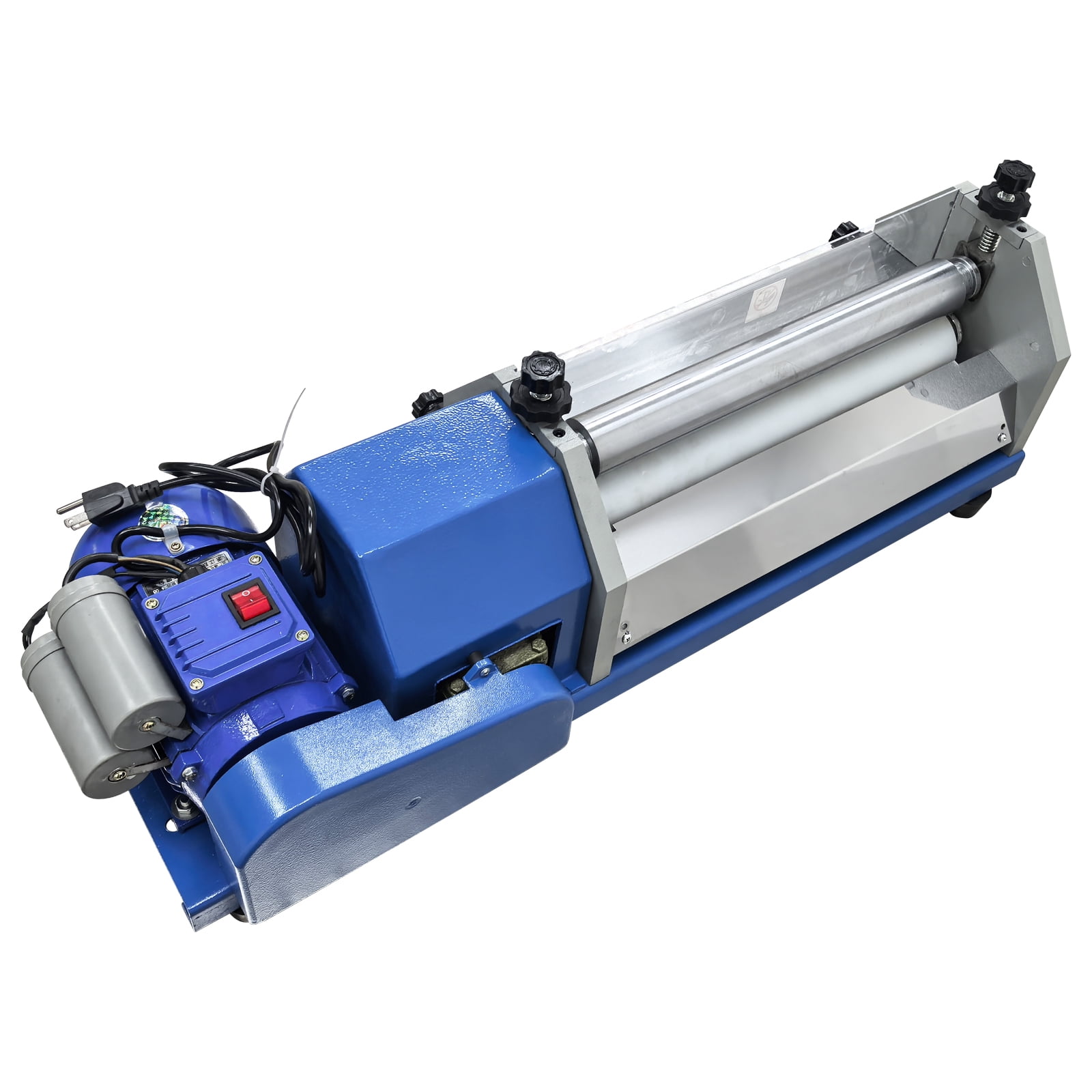

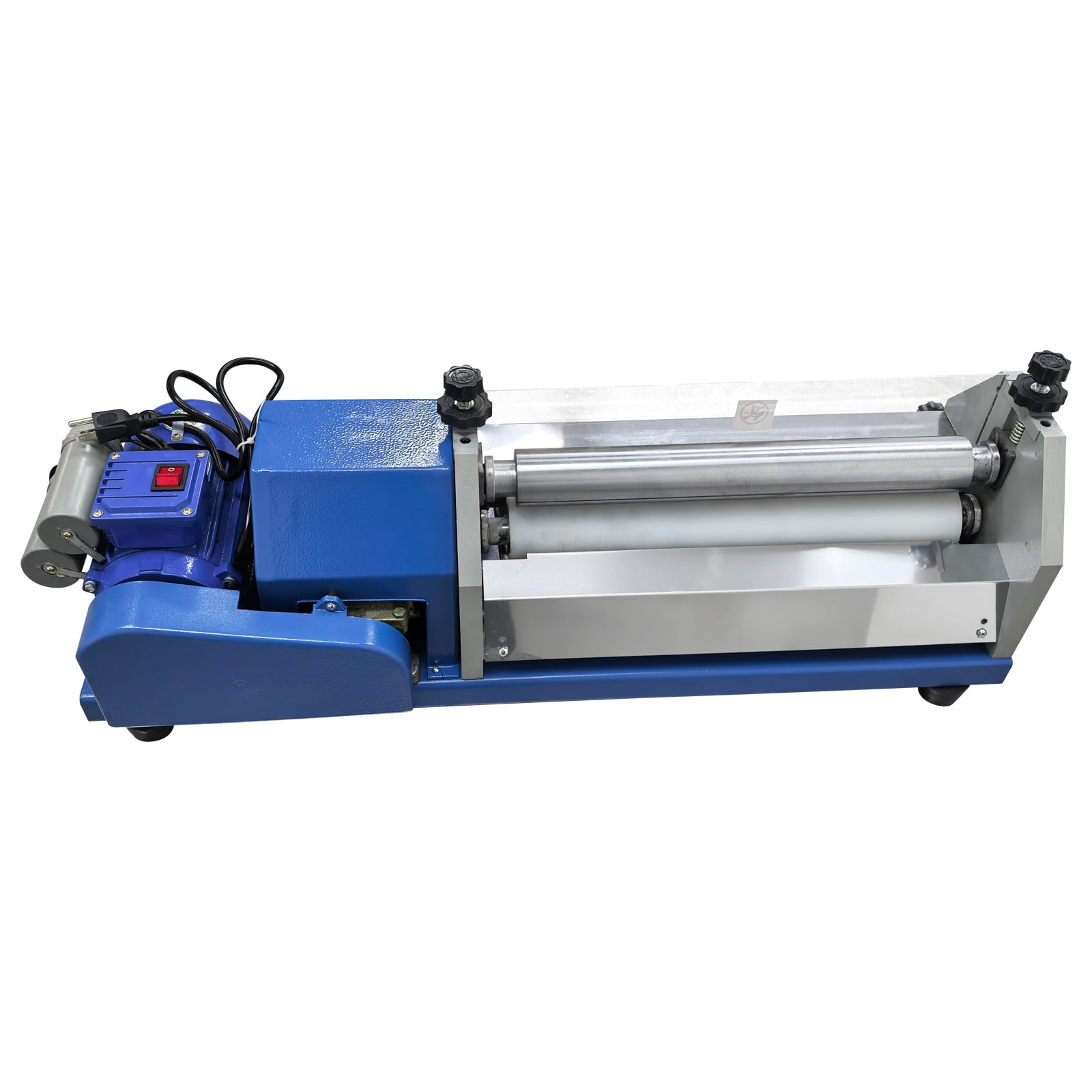

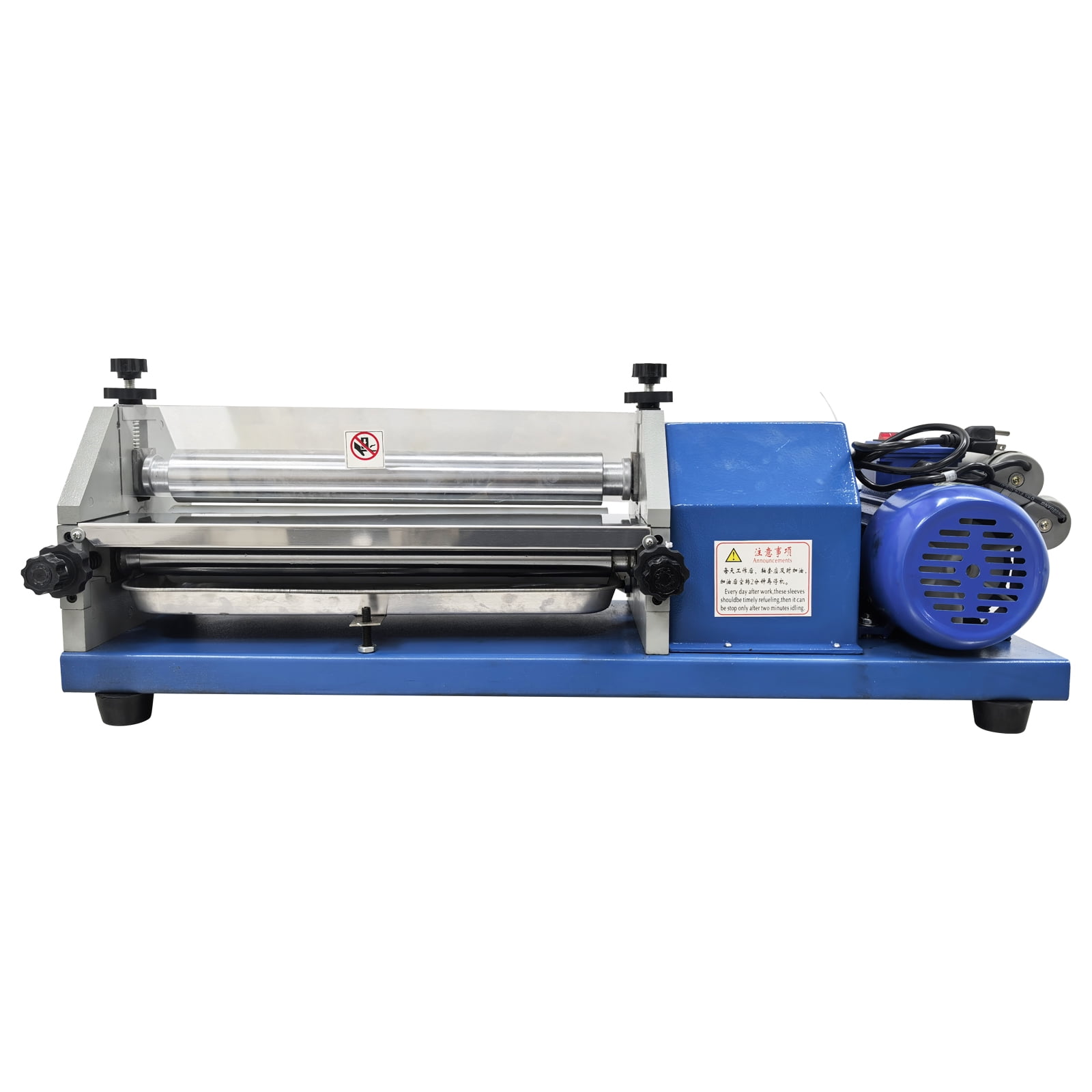

Automatic Gluing Machine Glue Coating Machine with Soft Roller 110V 15.75 Inch Coating Width 10m/min for Paper Leather

Product Overview <br>The automatic glue coating machine can be used for coating paper, leather and other similar materials with various water-soluble glues such as white latex. The thickness of glued materials can be adjusted at will within the range of 0.5-13mm. The gluing machine can conduct automatic glue coating operation when various materials need to be coated with adhesive layers. The machine can meet the requirements for the coating thickness and strength well and quickly. One steel roller and one soft roller are designed for the machine so that the glue coating can be more uniform and smoother. It is an optimal choice for automatic gluing of thin workpieces in various application fields of shoemaking, paper, leather and so on. <br> <br>Product Parameters <br>Voltage: 110V 60Hz <br>Power: 370W <br>Coating Speed: 10m/min <br>Coating Width: 15.75in (40cm) <br>Material Thickness: ≤13mm <br>Product Size: 33.86’’x11.02’’x12’’ (86x28x30.5cm) <br>Net weight: 40kg <br> <br>Attention <br> 1. In the working process, do not touch the rollers so as to prevent hands from being crushed. <br>2. Please note that the voltage of the gluing machine is 110V 60Hz. <br>3. If the glue is attached to the upper roller in the glue coating process, please wipe away the glue immediately so as not to dirty the material. <br>4. Each time the work is completed, please wipe away the glue on the machine to prolong the service life of the machine. <br>5. After the work is completed every day, each sleeve should be lubricated timely, then idling needs to be conducted for a few minutes, and then the machine can be stopped. <br> <br>Item Number (120097): <br>1 x Automatic Gluing Machine Glue Coating Machine 110V

• Wide application, suitable for gluing various materials such as paper and leather in different industrial fields.

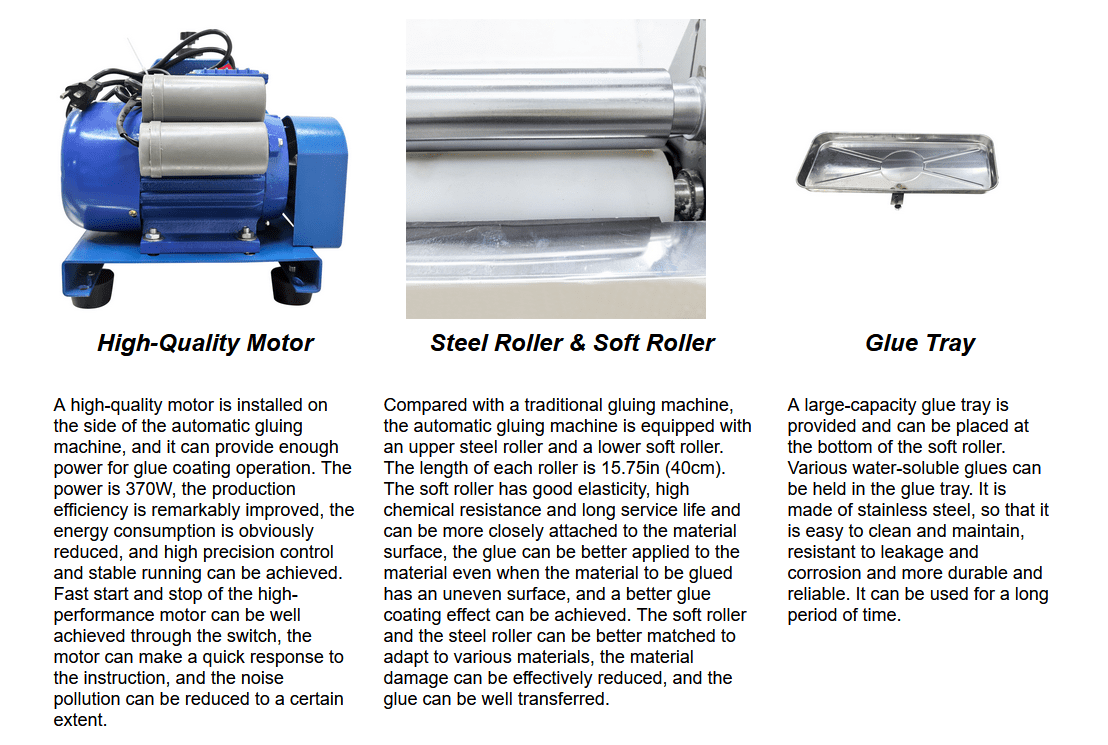

• High performance, the 370W power motor, low energy consumption and noise, fast start and stop.
• Better gluing effect, uses a soft roller and a steel roller with 15.75’’/40cm length, good elasticity, better coat uneven materials with glue.
• Large capacity, holds more glue with a stainless steel glue tray, easy to clean and maintain.

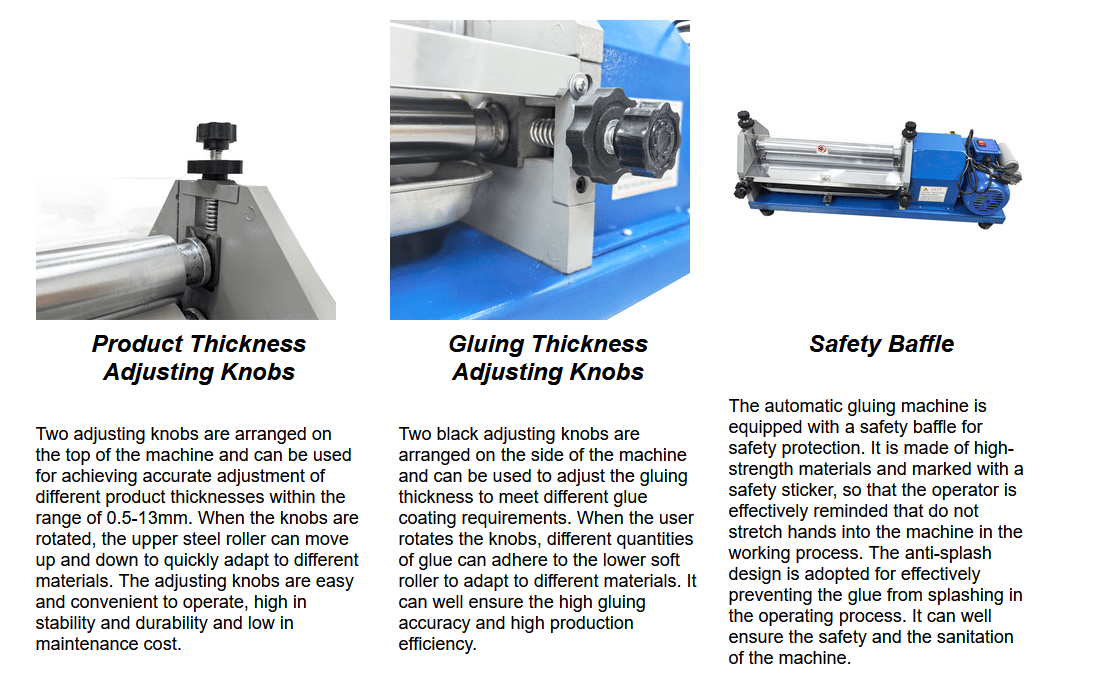

• Good adjustability, two production thickness adjusting knobs for flexibly adjusting the upper roller to adapt to materials with different thicknesses, and two gluing thickness adjusting knobs for flexibly adjusting the lower roller to meet the gluing thickness requirements.
• Safety protection, adopts a safety baffle with anti-splash design to improve safety and sanitation.
