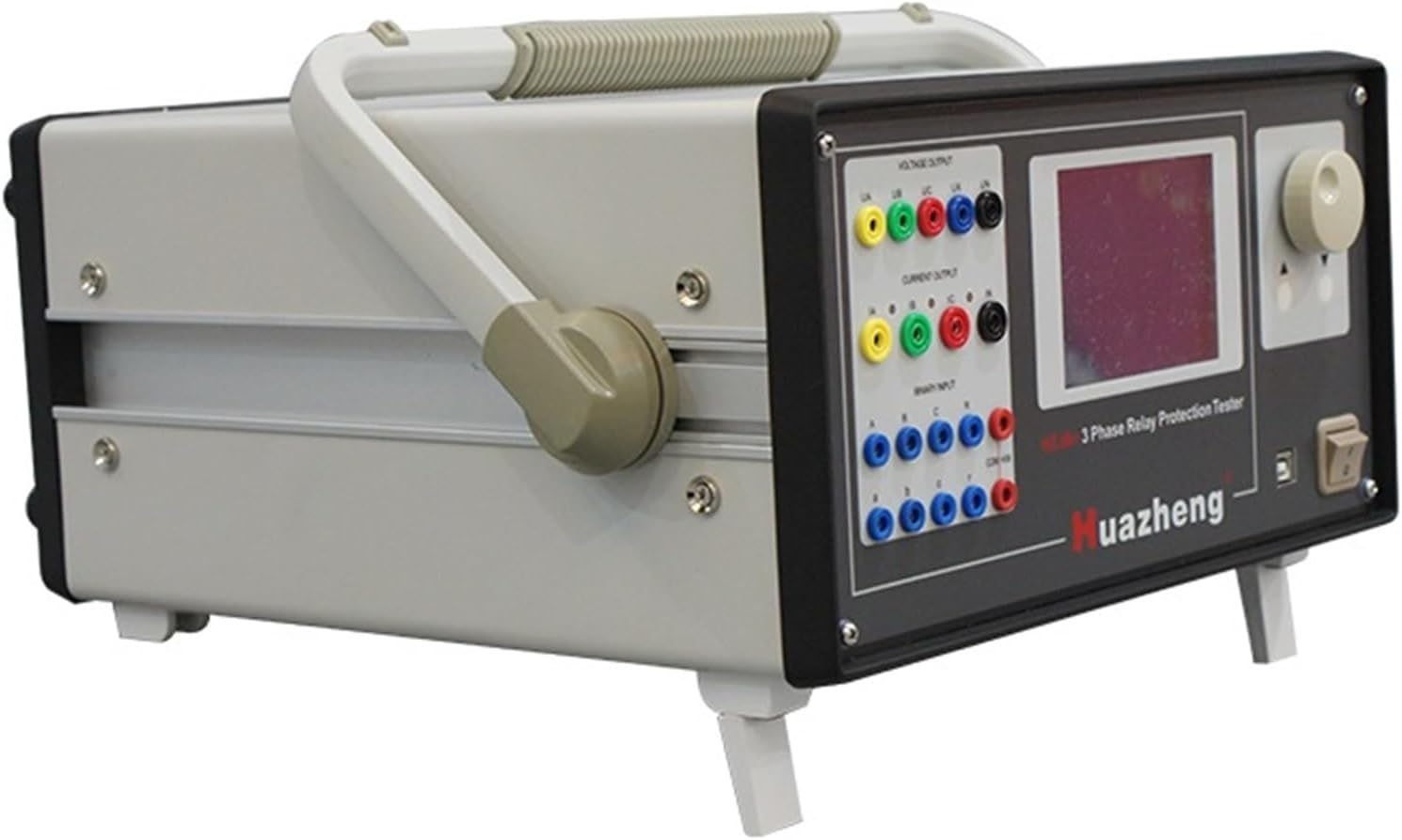

3 Phase Secondary Current Injector HV Relay Tester Kit

Relay3 phase secondary current injector hv secondary injection relay tester kitProduct Description1. secondary injection relay test set Features:Strong function of software The amount of switch quantity contacts is richLarge LCD screen Self-protection Independent DC power outputCost-effective 2. secondary injection relay test set ParameterAlternating current outputOutput accuracy: 0.5magnitudePhase current output (effective value): 0~40AThree parallel phase current output (effective value): 0~120APhase current value with long time under permission (effective value): 10APhase current maximum power output: 420VAThree parallel phase current maximum power output: 900VAThree parallel phase current maximum work time: 10sFrequency range (base wave): 20~1000HzHarmonic frequency number: 1~20 timeDirect current outputOutput accuracy: 0.5magnitudeCurrent output: 0 ~ ± 10 A/each phase 0 ~ ± 30 A/every three parallelMaximum output of load voltage: 20vAlternating voltage outputOutput accuracy: 0.5magnitudePhase voltage output (RMS): 0 ~ 120vLine voltage output (RMS): 0 ~ 240vPhase voltage/line voltage power output: 80VA/100VAFrequency range (base wave): 20 ~ 1000HzHarmonic frequency number: 1 ~ 20 timesDirect voltage outputOutput accuracy: 0.5magnitudePhase voltage output amplitude: 0 ~ +160vLine voltage output amplitude: 0 ~ + 320vPhase voltage/line voltage power output: 70VA/140VANo.ItemQty1 Main engine1 2 Power line1 3 Fuse pipe(10A)5 4 Fuse pipe(2A)5 5 USB data cable1 6 Four core test line2 7 Software disc1 8 Short test line (1 red 1 yellow 1 green 1 black)4 9 Long test line (3 blue 1 white 1 black)5 10Big alligator clip (2 red 2 yellow 2 green 2
